88 B2

Blower Seals

Outside Mounted Balanced Seal Single Acting, Independent of Direction of Rotation
Seal series 88 B2
Standard Style
Face Materials
Carbon
Ceramic (99.5%)
Silicon Carbide
Tungsten Carbide

Metal Parts

AISI 316
Hastelloy-C
Monel
Alloy – 20

Secondary Seals

bullet   Elastomers

Applications

bullet   Corrosive Chemicals
bullet   Hydrocarbons
bullet   General & Light Chemicals

Seal Characteristics

bullet   Single acting
bullet   Outside Mounted
bullet   Independent of direction of rotation
bullet   Balanced
Operating Limits
Shaft Diameterd1:  10 … 100 mm
Pressure pp:  35 bar
Temperaturet:  -45 … +260 o C
Velocityv:  20 m/s.

Series 88 B2 is multiple spring externally mounted balanced seal with ‘O’ ring as secondary sealing member. Various seal face materials and elastomers can be offered for wide service application. This seal can also be used for corrossive services as the mettallic components ie. Retainer, Spring, Thrust Ring etc. do not come in contact with liquid to be sealed.

1258691735e25418821200a0f7c8f9f81b22d21691

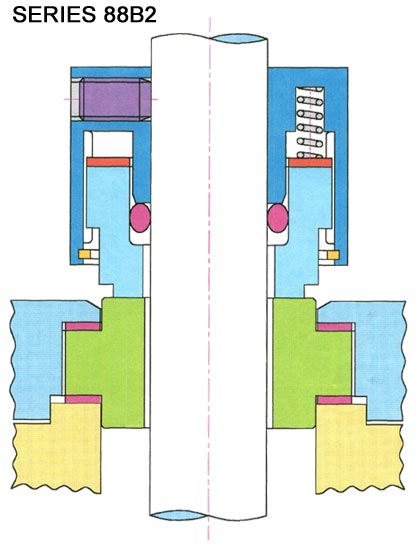

127710731588b2cross
