Single Mechanical Seals for Glass Lined Agitators, & Vessels with Cooling jacket & Bearing
Agitator Seals

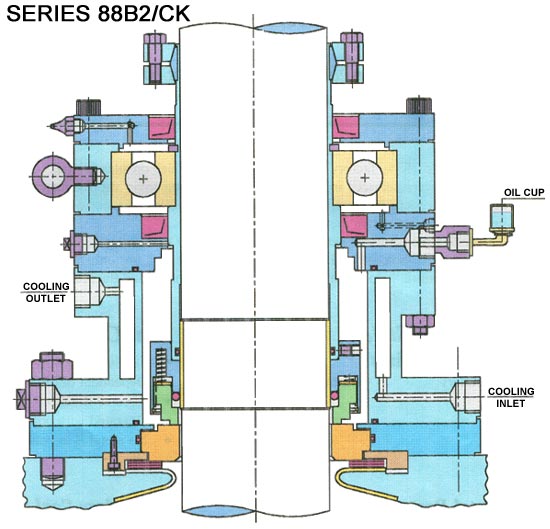

Seal series 88B2/CK
Standard Style
Face Materials
Rotary :- Carbon v/s Ceramic

Metal Parts

SS 316, Carbon steel

Secondary Seals

bullet   PTFE


bullet   Corrosive Services
bullet   Pharmaceutical Industries

Seal Characteristics

bullet   Single acting
bullet   Independent of direction of rotation
bullet   Reverse Balanced
bullet   Operated with non-pressurized barrier fluid
bullet   No metal is in contact with the media / vapors
Operating Limits
Shaft Diameterd1:  40.0, 50.0, 60.0, 80.0, 100.0, 125.0mm
Pressure pp:  Vacuum to 12 bar
Temperaturet:  Amb…120 o C
Velocityv:  300 RPM

Series 88B2/CK is factory assembled cartridge units on glass lined vessels. The seals are designed for handling severe services including products emitting toxic vapors during reaction process. These are used with non pressurized barrier fluid like oil considering the corrosion resistance of the wetted parts and compatibility with main media being sealed.
The designed incorporates bearing located very close to the seal. This standard feature effectively arrests the shaft whip for smooth and trouble free operation enabling enhanced seal life. The cooling jacket, also a standard feature, helps to maintain cool envirnment around the seal.
